ALMCO Cabinet Spray Washers
Rotary spray washing that hits every side of the part, from economy cabinets to stainless production cells
- Turntable Sizes
- 24 to 72 in
- Construction
- Stainless steel
- Door
- Front swing, opens 180 degrees
- Spray Coverage
- 360 degree
Applications
Where It Works
- Batch parts cleaning
- Degreasing before coating or assembly
- Manufacturing work cells
- Stainless production washing
Features
Built In
- A rotating turntable carries every side of the part through the spray nozzles, so a single cycle covers the whole part.
- Heated wash tanks with float-switch heater protection and a removable stainless steel chip tray keep the solution hot and clean.
- A process timer runs each wash cycle and automatic water and compound replenishment holds the solution at strength.
- Step up from a mild steel economy cabinet to a fully optioned stainless cell with rinse, blow-off, filtration, oil skimming, and PLC touchscreen controls.
Rotary Cabinet Washers (RCW Series)
The stainless cabinet washer. A rotating turntable carries parts through 360 degree spray while a front swing door opens 180 degrees for hand or hoist loading. Turntable sizes run from 24 to 72 inches, with upgraded controls and options for rinse, blow-off, filtration, and oil skimming to cover a wide range of part sizes and shapes. An economy mild steel version, the ECW-29 with a 29 inch turntable and a single solution tank and spray pump, is available for shops that want dependable cabinet washing without the options.
At a Glance
- Turntable Sizes
- 24 to 72 in
- Construction
- Stainless steel
- Door
- Front swing, opens 180 degrees
- Spray Coverage
- 360 degree
By Turntable Size
| Turntable Size | Cabinet Height | Wash/Rinse Tanks | Wash/Rinse Pumps | Blow-off |
|---|---|---|---|---|
| 24 in | 30 in | 50/50 gal | 2/1 HP | 5 HP |
| 30 in | 36 in | 75/50 gal | 3/1 HP | 10 HP |
| 36 in | 50 in | 100/50 gal | 5/1 HP | 10 HP |
| 42 in | 50 in | 125/50 gal | 5/1 HP | 10 HP |
| 48 in | 50 in | 110/50 gal | 7.5/2 HP | 15 HP |
| 60 in | 50 in | 160/80 gal | 10/2 HP | 15 HP |
| 72 in | 50 in | 220/110 gal | 10/2 HP | 20 HP |
Wash System
- Wash Tank
- Heated
- Heater Protection
- Float switch
- Cycle Control
- Process timer per wash cycle
- Replenishment
- Automatic water and compound
- Exhaust
- Vapor exhaust duct connections
- Chip Tray
- Removable stainless steel
- Safety
- Interlock switch on door
Rotary Parts Washers (RPW Series)
Front-loading turntable washers with powered sliding doors that close automatically once parts are loaded to contain the spray. A rotating turntable and fixturing reach surfaces standard cabinets cannot, and the machine runs batch or continuous, with a pass-through configuration for a continuous feed work cell. Turntable sizes run from 18 to 72 inches, with larger sizes available as custom builds.
At a Glance
- Turntable Sizes
- 18 to 72 in (larger sizes custom)
- Power Supply
- 230V or 460V standard (380V or 575V optional)
- Door
- Powered sliding, auto-close
- Spray Coverage
- 360 degree
By Turntable Size
| Turntable Size | Cabinet Height | Wash/Rinse Tanks | Wash/Rinse Pumps | Blow-off |
|---|---|---|---|---|
| 18 in | 18 in | 140/90 gal | 3/1 HP | 2 HP |
| 24 in | 24 in | 185/110 gal | 3/2 HP | 3 HP |
| 30 in | 30 in | 200/110 gal | 5/2 HP | 3 HP |
| 36 in | 36 in | 220/120 gal | 5/2 HP | 5 HP |
| 42 in | 36 in | 275/160 gal | 7.5/2 HP | 5 HP |
| 48 in | 36 in | 340/210 gal | 7.5/3 HP | 5 HP |
| 54 in | 36 in | 395/240 gal | 10/3 HP | 5 HP |
Wash System
- Loading
- Front-loading turntable or platform
- Spray Coverage
- 360 degree
- Operation Modes
- Batch or continuous
- Pass-Through
- Configurable for continuous feed work cell
Options
- Wash Stages
- Multiple wash and rinse stages available
- Turntable Drive
- Variable speed available
- Construction
- Stainless steel available

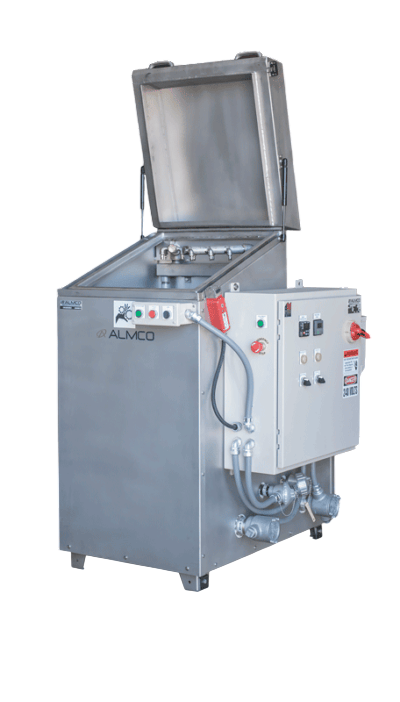

Rotary Top-Load Washers (RTW Series)
A lift-up top lid instead of a front door, so parts load from overhead straight onto the turntable. The turntable rotates the part through the spray nozzles for a full 360 degree wash, in stainless steel construction and three standard turntable sizes. A flexible fit for batch cleaning or a manufacturing work cell.
Range
- Turntable Sizes
- 20, 25, 36 in
- Pump Power
- 2 to 5 HP
- Construction
- Stainless steel
- Power Supply
- 230V or 460V
Model RTW-20
- Turntable Diameter
- 20 in
- Pump
- 2 HP
- Overall Dimensions
- 36 x 52 x 73 in
Model RTW-25
- Turntable Diameter
- 25 in
- Pump
- 3 HP
- Overall Dimensions
- 51 x 50.5 x 74 in
Model RTW-36
- Turntable Diameter
- 36 in
- Pump
- 5 HP
- Overall Dimensions
- 63.5 x 78 x 98.5 in
Wash System
- Load Style
- Lift-up top lid
- Spray Coverage
- 360 degree
- Wash Tank
- Heated
- Heater Protection
- Float switch
- Chip Tray
- Removable stainless steel
- Cycle Control
- Process timer per wash cycle
- Safety
- Interlock switch on lid and doors
