Durma
Durma RP Punch Press
CNC rotation punch press with Harmonic Drive indexing and automatic X-axis reposition for angular hole patterns on sheets over 2 meters
- Models
- RP6, RP9 (2 models)
- Punching Force
- RP6 30 tons / RP9 20 tons
By Application
Punching & Notching
Punching and notching put holes, louvers, and profiles into sheet and structural stock fast. From high-mix turret punching to angular rotation punching and heavy structural ironworkers, this equipment handles the features that get a part ready to bend, fasten, or assemble.
The Lineup
Punching & Notching Machines
Durma
Durma TP Turret Punch Press
CNC turret punch press with 1200 strokes/min punching and 3200 strokes/min marking, faster than mechanical turrets
- Models
- TP9, TP93, TP123, TPL93, TP Servo, TPL Servo (6 models)
- Punching Force
- 20 to 30 tons
Boschert
Boschert CombiLaser Punching and Fiber Laser Machine
Combined CNC punching and fiber laser cutting on one machine, so complex parts are punched, formed, and cut in a single setup
- Configurations
- CombiLaser Compact, TWIN, TRI, Multipunch
- Working Area
- 1060 x 2000 mm to 1560 x 3000 mm
Boschert

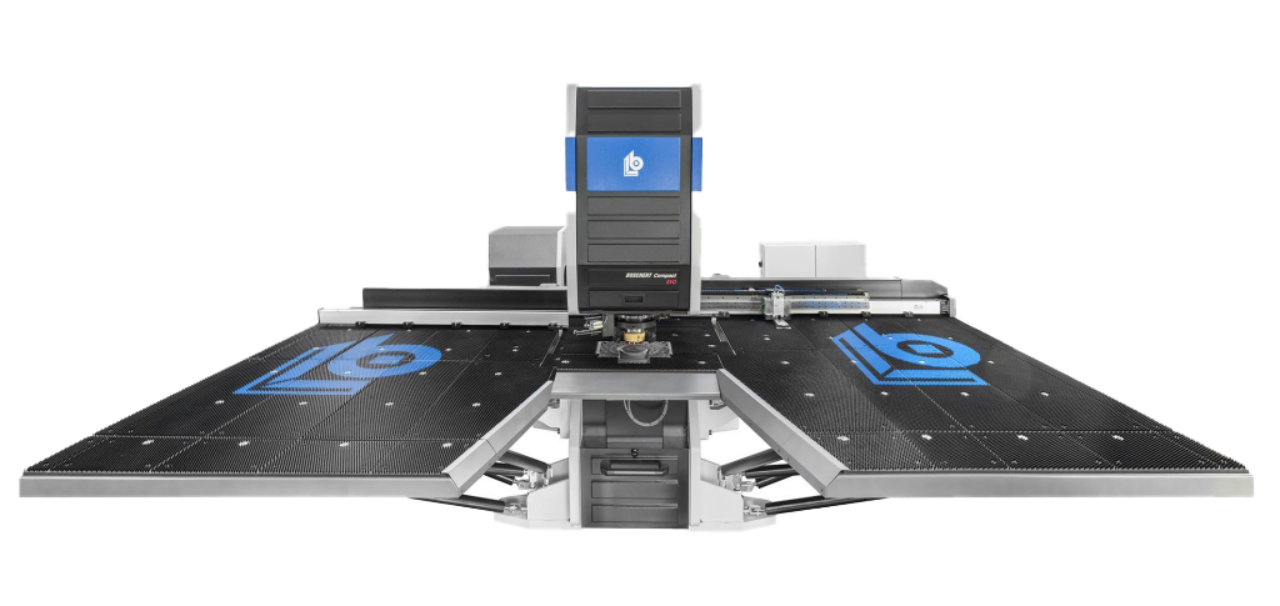

Boschert CP EVO Series CNC Punching Machine
CNC punching with the CP EVO series and RevoTool multi-tool for virtually any contour with automatic tool change
- Models
- CP-750, CP-1000, CP-1250, CP-1500
- Working Range
- 30 x 80 in to 60 x 80 (120) in
Boschert
Boschert CP-R EVO Rotation-Index CNC Punching Machine
CP series punching with a 360-degree rotating, auto-indexing ram, so every tool including the RevoTool sets to any angle for complex contours without stopping
- Models
- CP-1000, CP-1250, CP-1500 (Rotation-Index)
- Working Range
- 40 x 80 in to 60 x 80 (120) in
Boschert

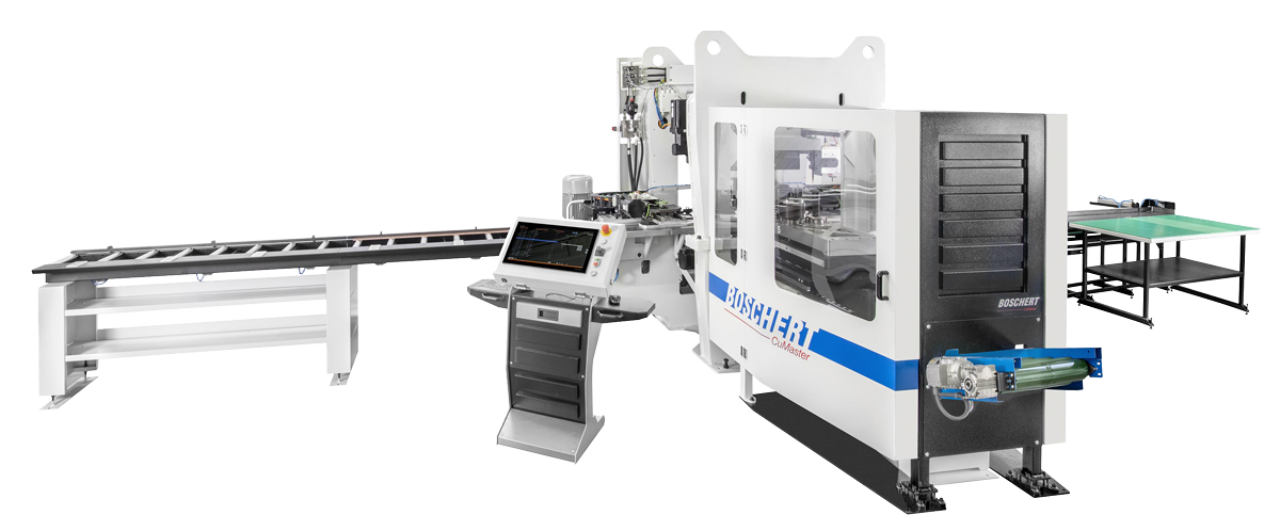

Boschert CU Master Copper Bar Processing Machine
World benchmark copper bar processing for complex parts with maximum tool count and automation options
- Maximum Workpiece Length
- 4000 mm / 150 in (6000 mm optional)
- Bar Width
- 15 to 305 mm
Boschert

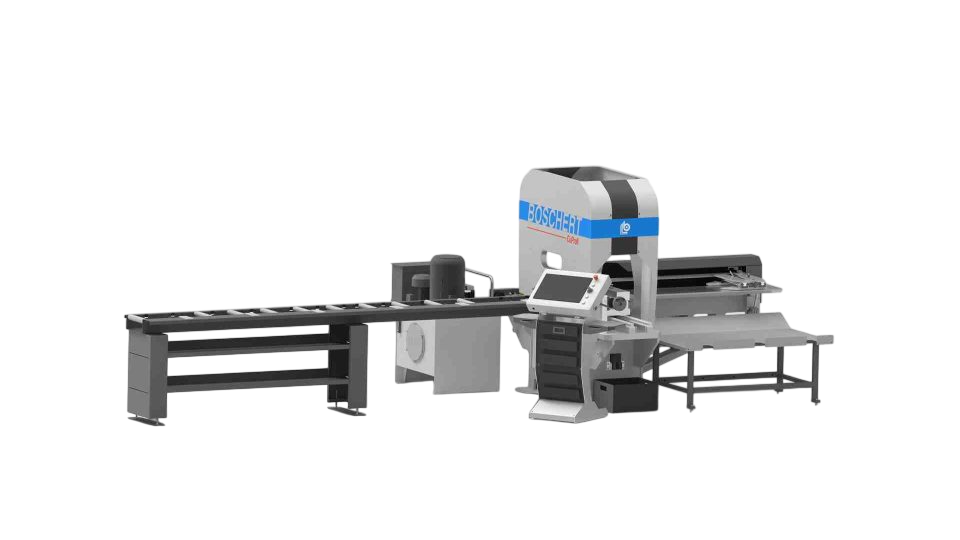

Boschert CU Profi Copper Bar Processing Machine
Versatile copper bar processing with many options from simple bus bars through fully automated systems
- Maximum Workpiece Length
- 4000 mm / 150 in (6000 mm optional)
- Bar Width
- 15 to 200 mm
Boschert

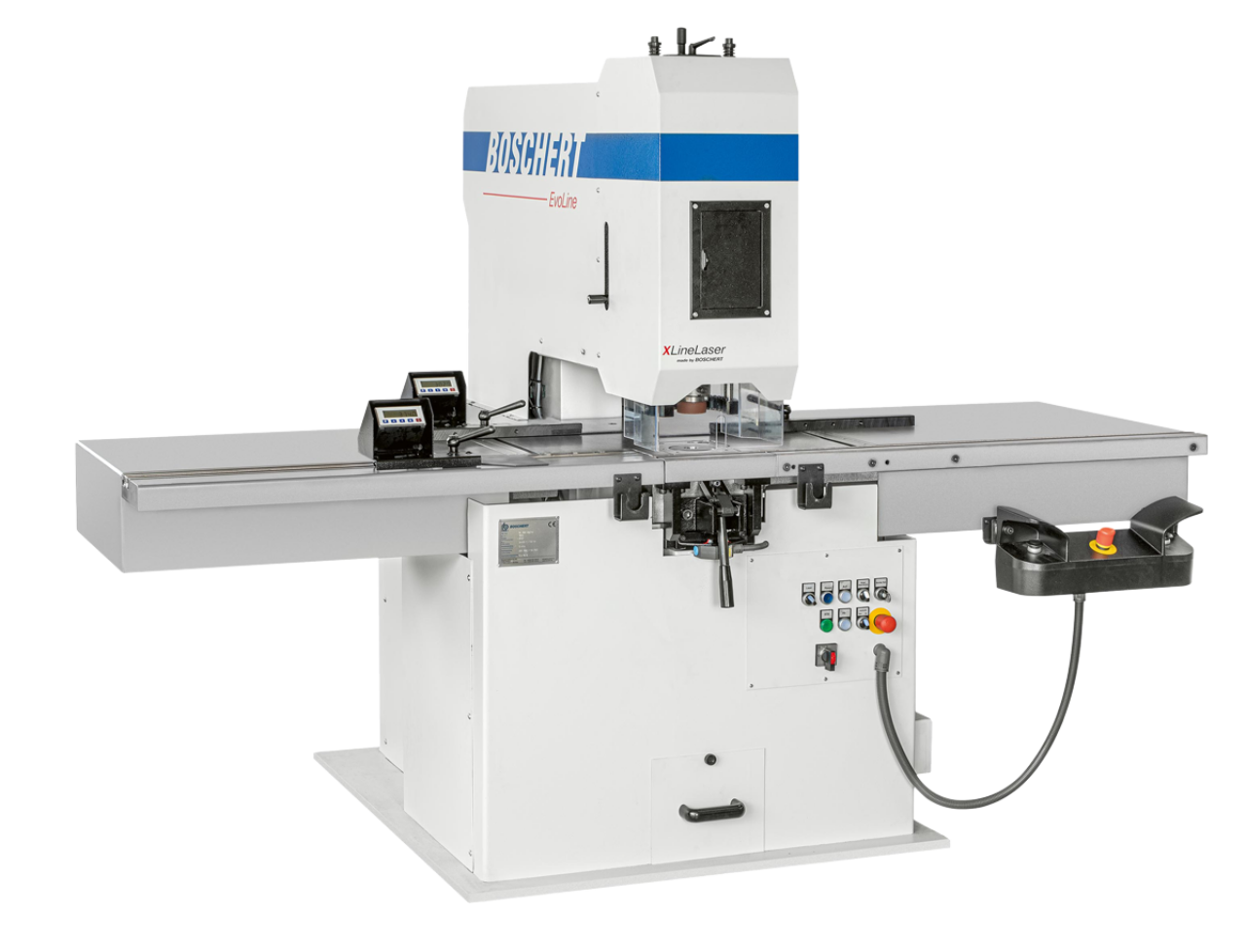

Boschert EL Series Manual Punching Machine
High-performance manual punching machines for smaller production runs with precision and efficiency
- Models
- EL 300, EL 500, EL 750, EL 1000
- Maximum Punching Force
- 36 tons (50 tons optional)
Boschert

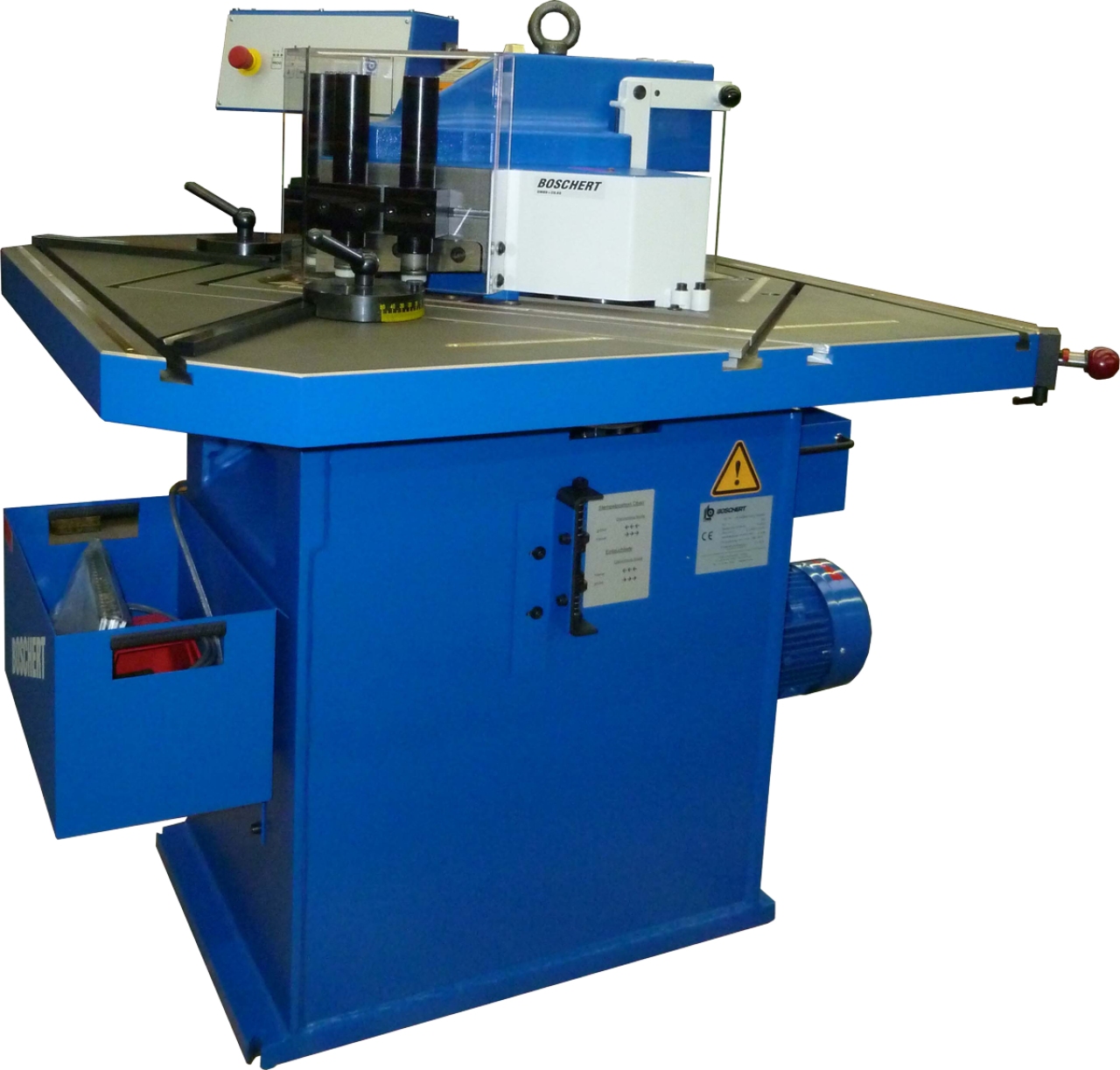

Boschert Hydraulic Notchers
Hydraulic notchers with TRI-GIDE 3-point ram guidance for 90-degree fixed or 30 to 120-degree variable angle cuts
- Fixed 90-degree Models
- Lite, Eagle, Silver Eagle, Golden Eagle
- Variable-Angle Models
- Vari-IV, K30-120
Boschert

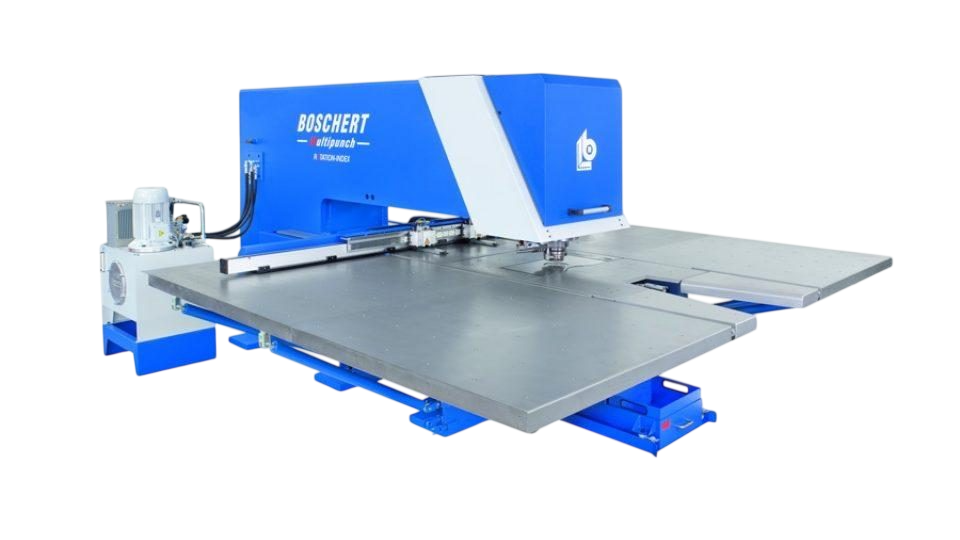

Boschert MultiPunch 1250 and 1500 CNC Punching Machines
The mid-format MultiPunch models, 1250 and 1500, bring 8-station auto tool change and 360-degree rotation to sheets up to 60 by 120 inches
- Models
- MP-1250, MP-1500
- Working Range, MP-1250
- 50 x 100 in
Boschert

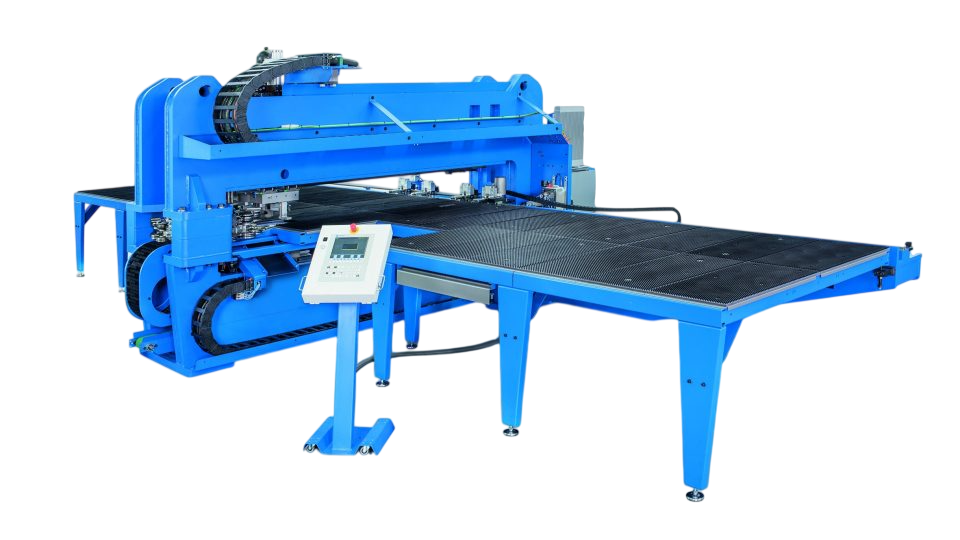

Boschert MultiPunch 4020 Large-Format CNC Punching Machine
CNC punching, forming, and marking on super-format 2000 x 4000 mm sheets, with a 12-station tool changer and up to 96 tools for high-mix work
- Sheet Size
- Up to 2000 x 4000 mm (super format)
- Maximum Sheet Length
- 9999 mm by repositioning
Boschert

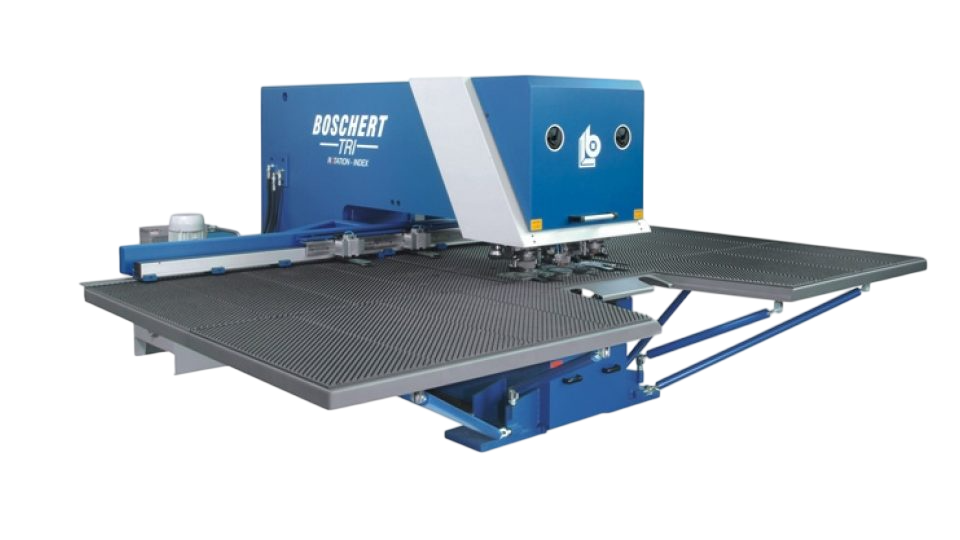

Boschert Twin/Tri Multi-Head CNC Punching Machine
Two or three independent punch heads working the same sheet, the highest-throughput option in the Boschert CNC punching lineup
- Frame Sizes
- 500, 750, 1000, 1250, 1500
- Working Range
- 20 x 40 in to 60 x 120 in
Piranha

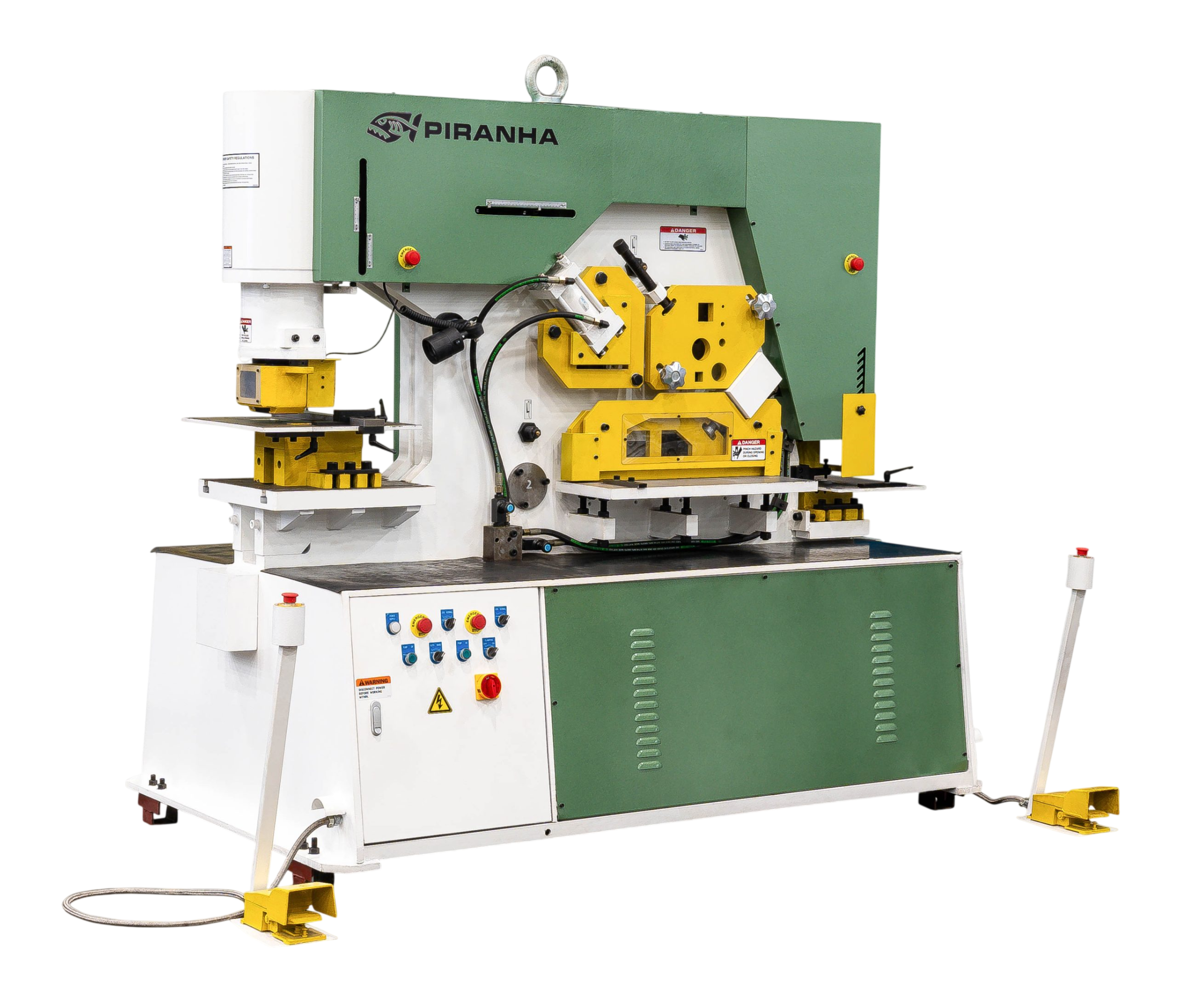

Piranha BII-132 Ironworker
132-ton dual-operator ironworker for high-volume structural fabrication where two operators run punch and shear simultaneously
- Tonnage
- 132 tons
Piranha

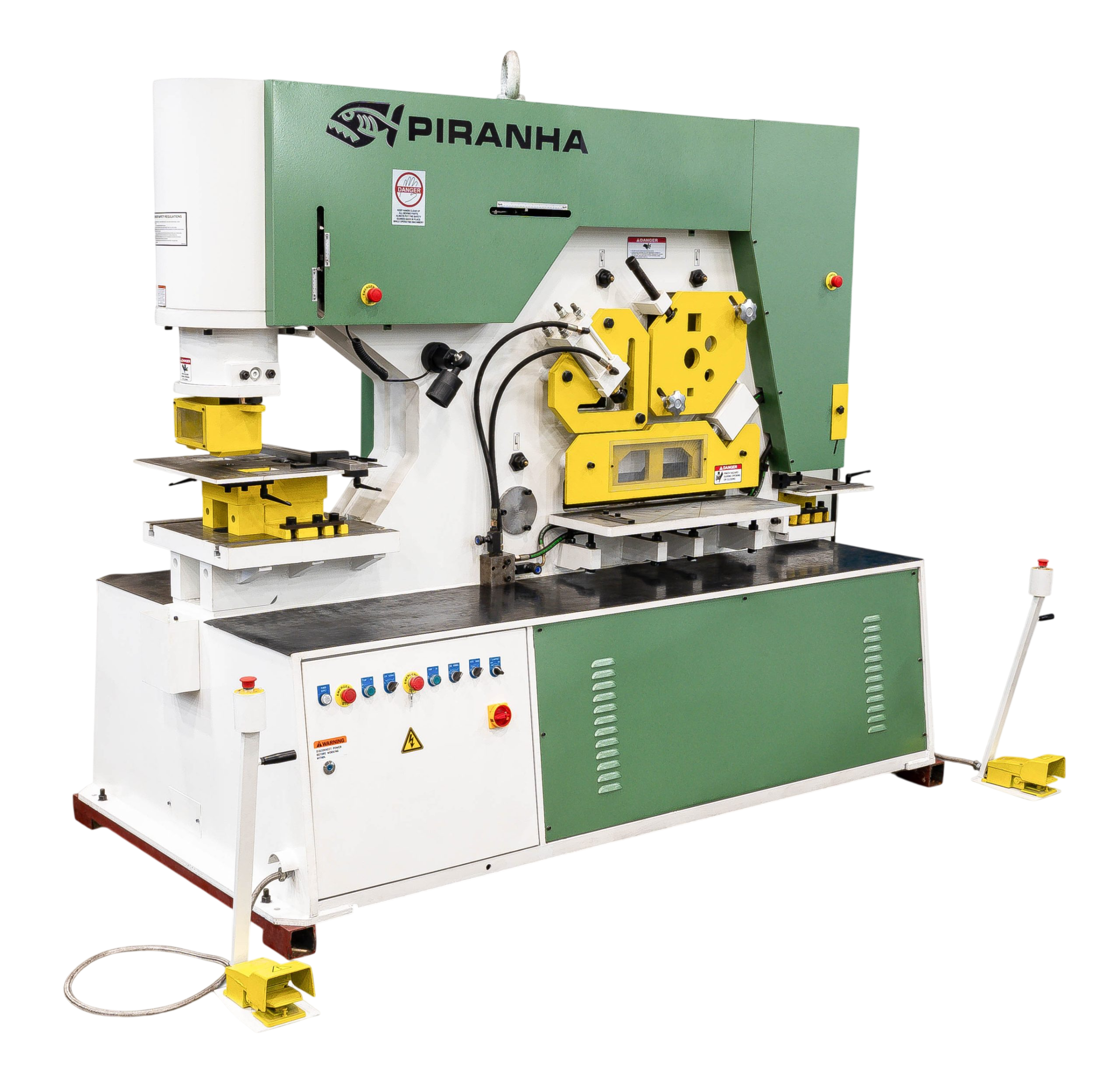

Piranha BII-225 Ironworker
225-ton dual-operator ironworker, the most powerful in the Piranha lineup for the heaviest structural steel work
- Tonnage
- 225 tons
Piranha

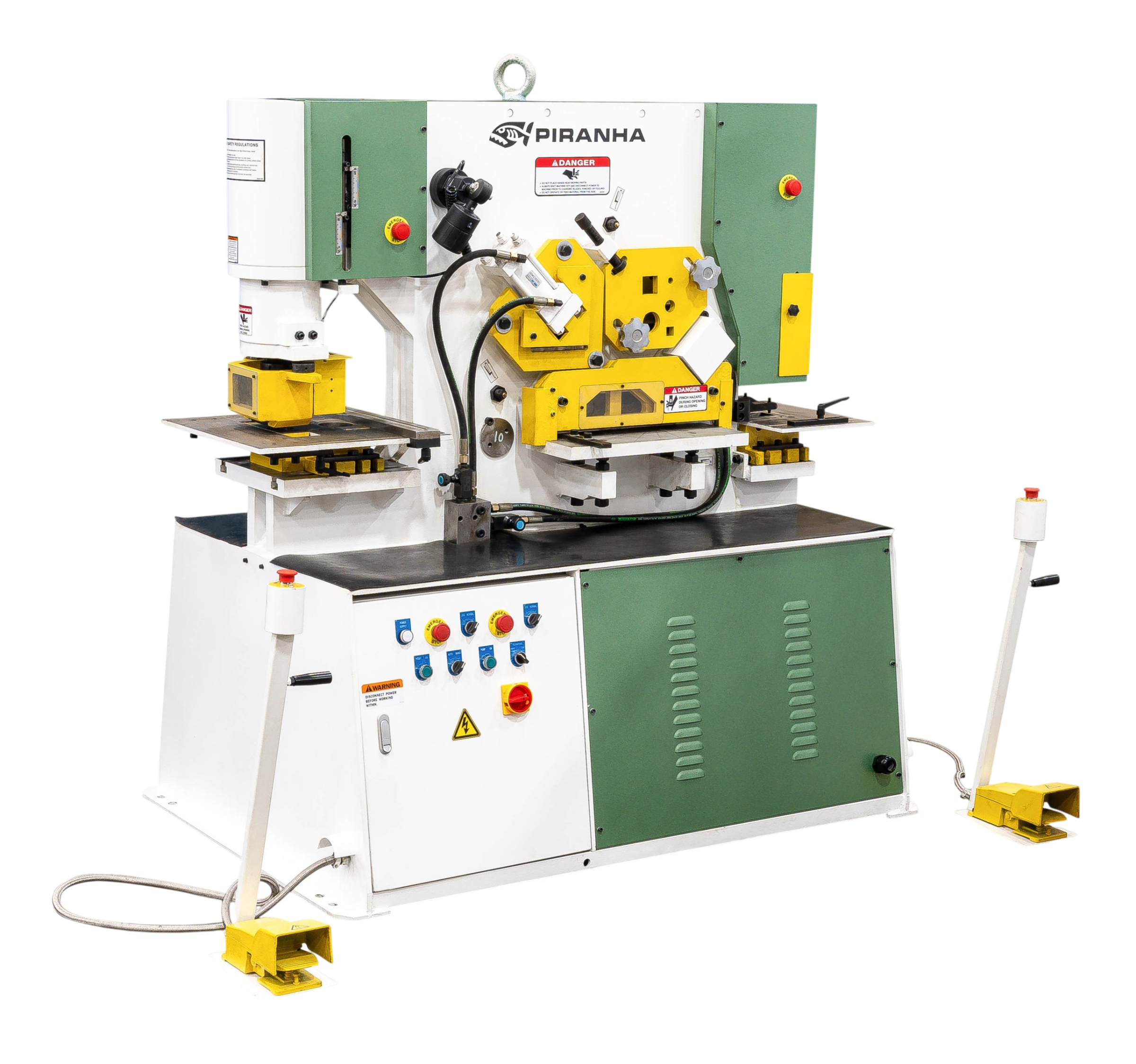

Piranha BII-66 Ironworker
66-ton dual-operator ironworker with a true dual hydraulic system, so punching and shearing run independently at the same time
- Tonnage
- 66 tons
- Punch Tonnage
- 66 tons
Piranha

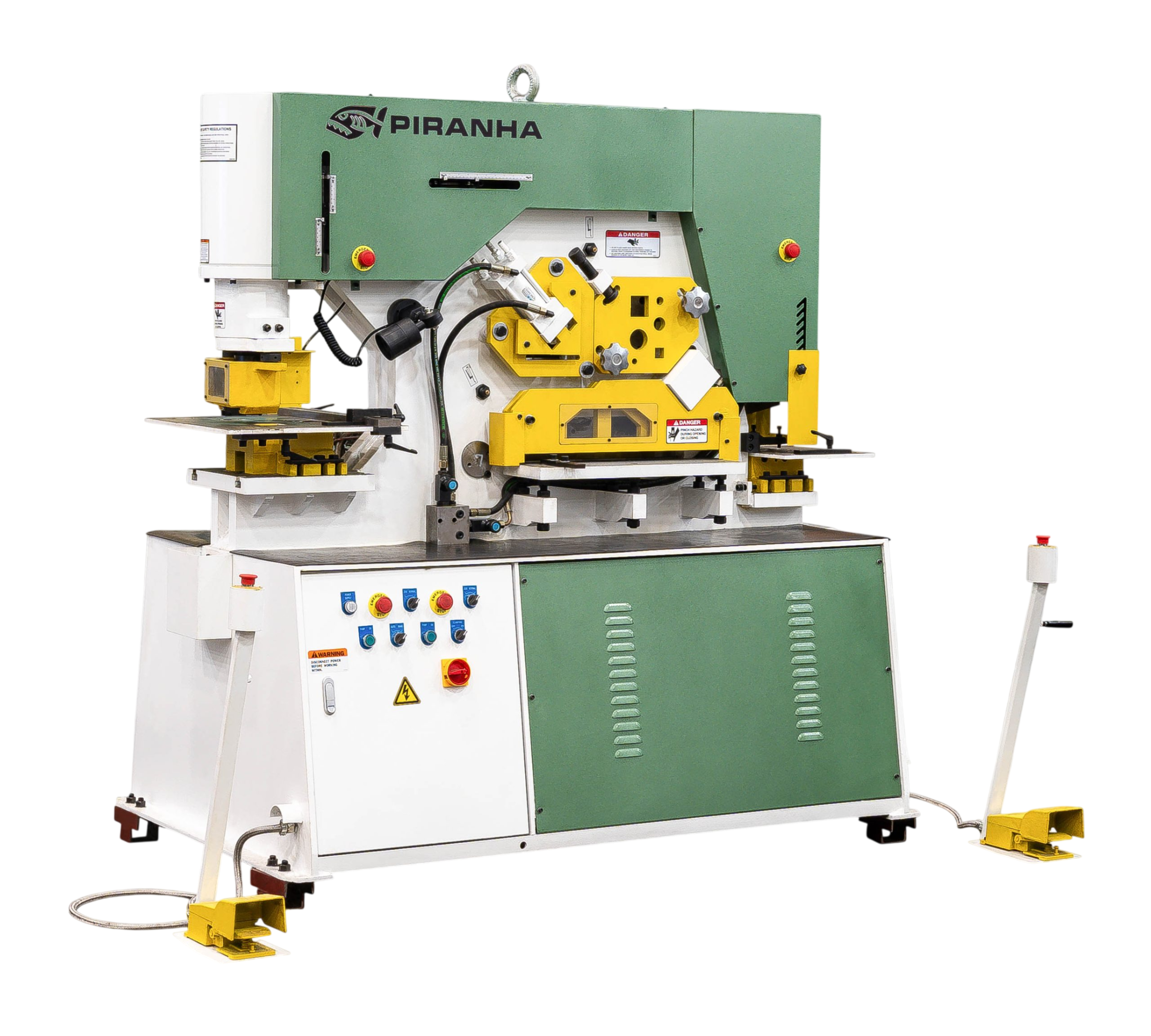

Piranha BII-88 Ironworker
88-ton dual-operator ironworker with independent punching and shearing for maximum throughput on structural steel production
- Tonnage
- 88 tons
Piranha

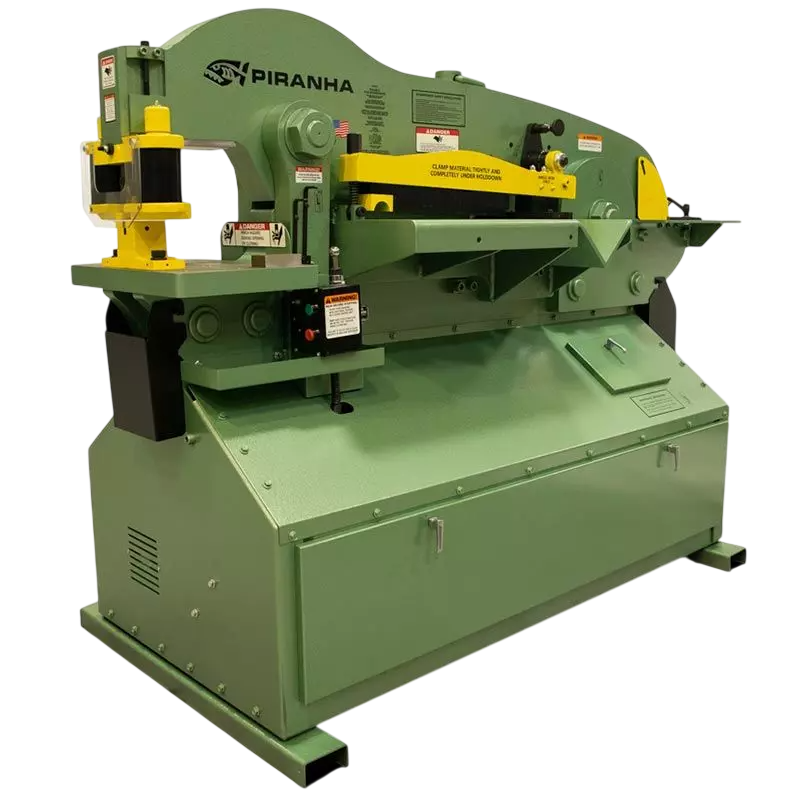

Piranha P-110 Ironworker
110-ton ironworker precision-machined for industry-leading accuracy on structural steel punching, shearing, and notching
- Tonnage
- 110 tons
- Throat Depth
- 12 in
Piranha

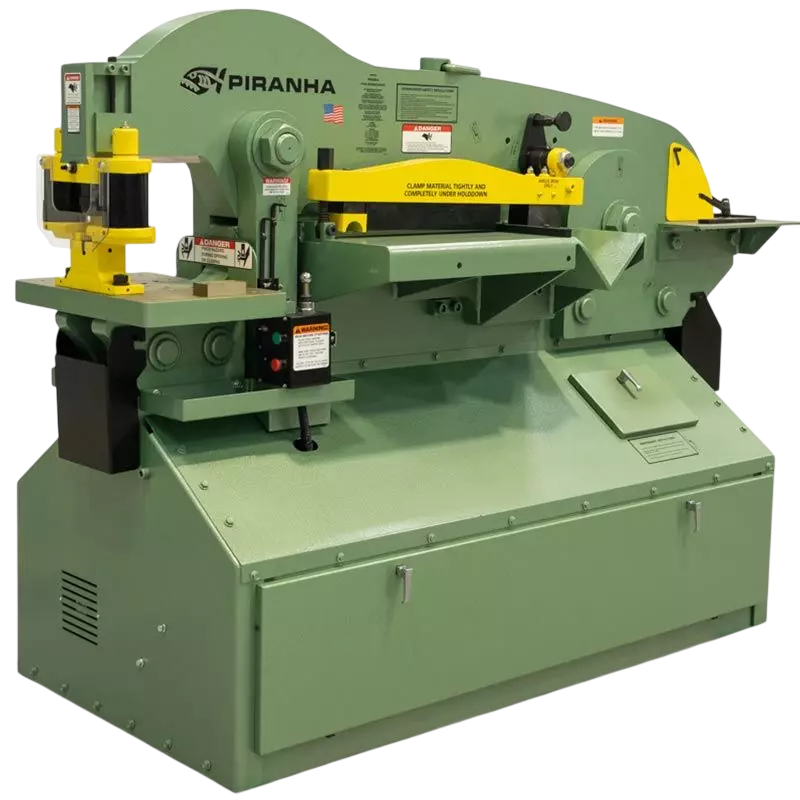

Piranha P-140 Ironworker
140-ton flagship P-Series ironworker, the gold standard for structural steel fabrication since 1974
- Tonnage
- 140 tons
- Throat Depth
- 12 in
Piranha

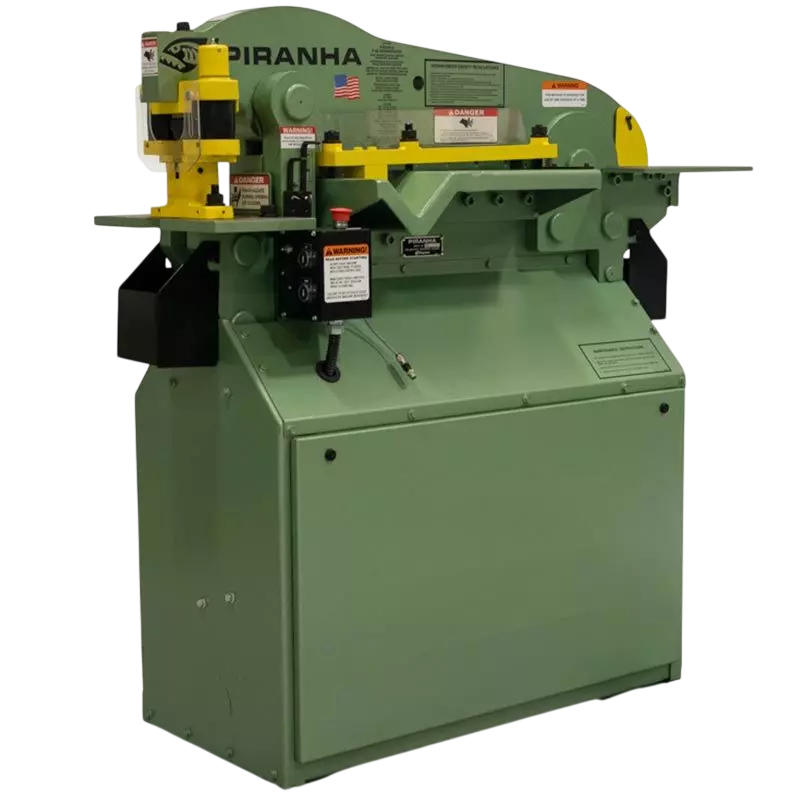

Piranha P-50 Ironworker
50-ton American-made ironworker for punching, shearing, and notching structural steel in a compact single-operator footprint
- Tonnage
- 50 tons
- Throat Depth
- 5 in
Piranha

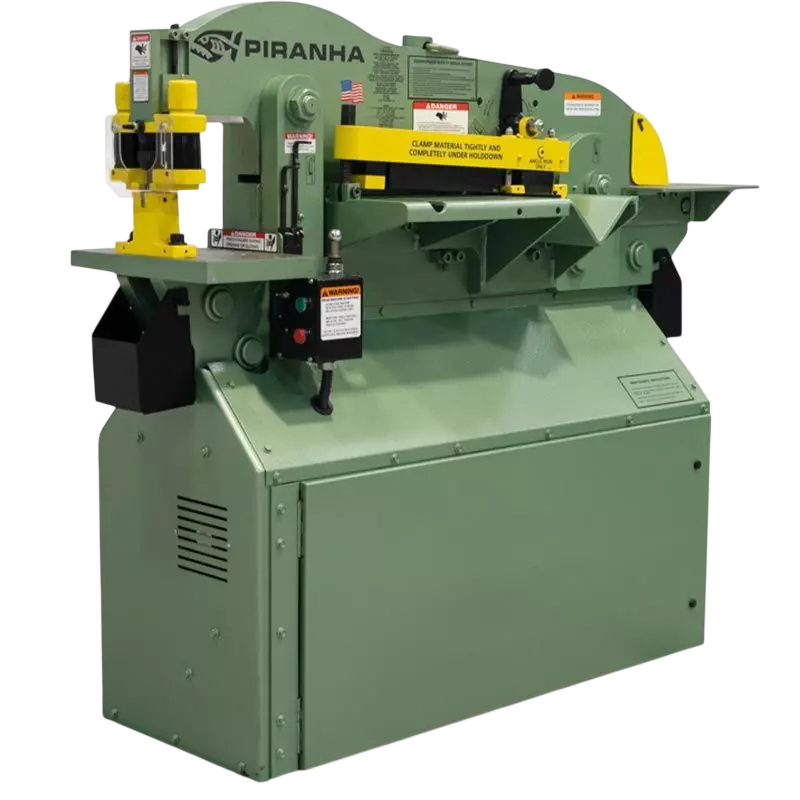

Piranha P-65 Ironworker
65-ton American-made ironworker with expanded shearing capacity and optional speed-up kit for higher production rates
- Tonnage
- 65 tons
- Throat Depth
- 8 in
Piranha

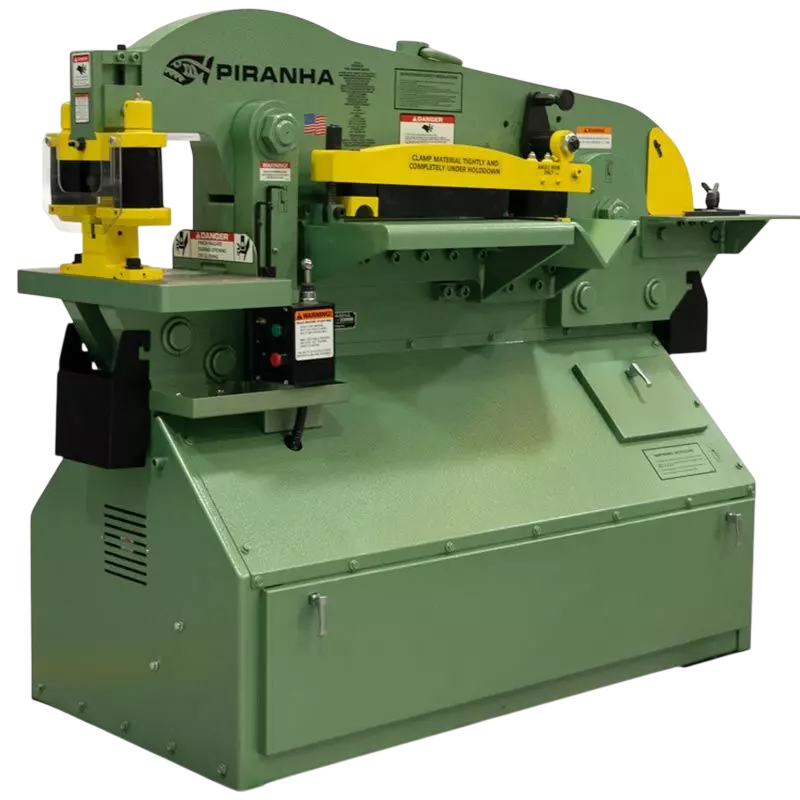

Piranha P-90 Ironworker
90-ton ironworker with 18-inch plate shear capacity and heavy bar shearing up to 2-inch round stock
- Tonnage
- 90 tons
- Throat Depth
- 10 in
Piranha

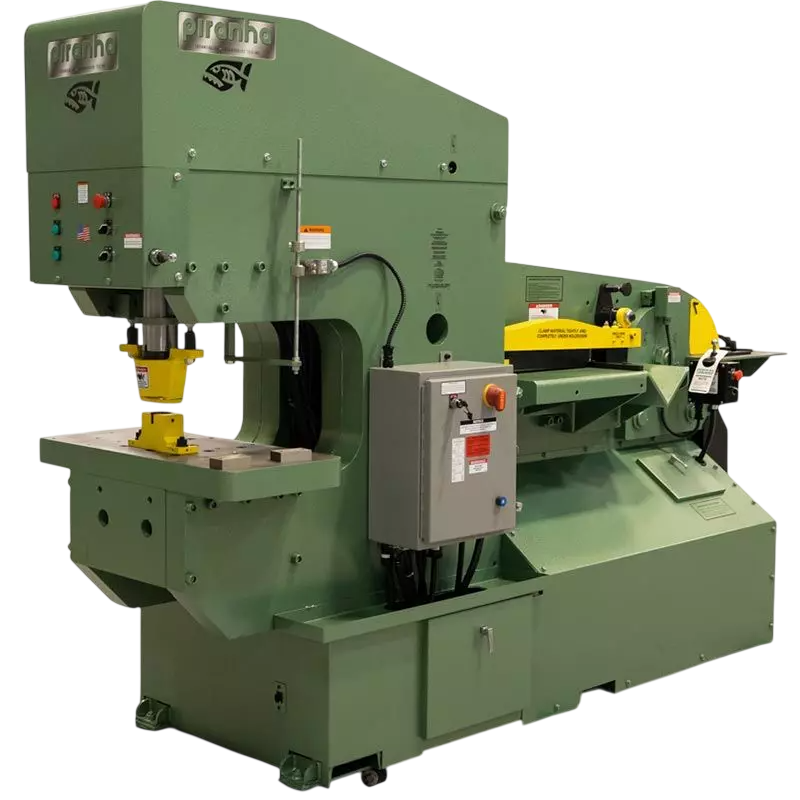

Piranha PII-140 Ironworker
140-ton heavy-duty single-operator dual-station ironworker for the most demanding structural fabrication work
- Tonnage
- 140 tons
- Throat Depth
- 20.5 in
Piranha

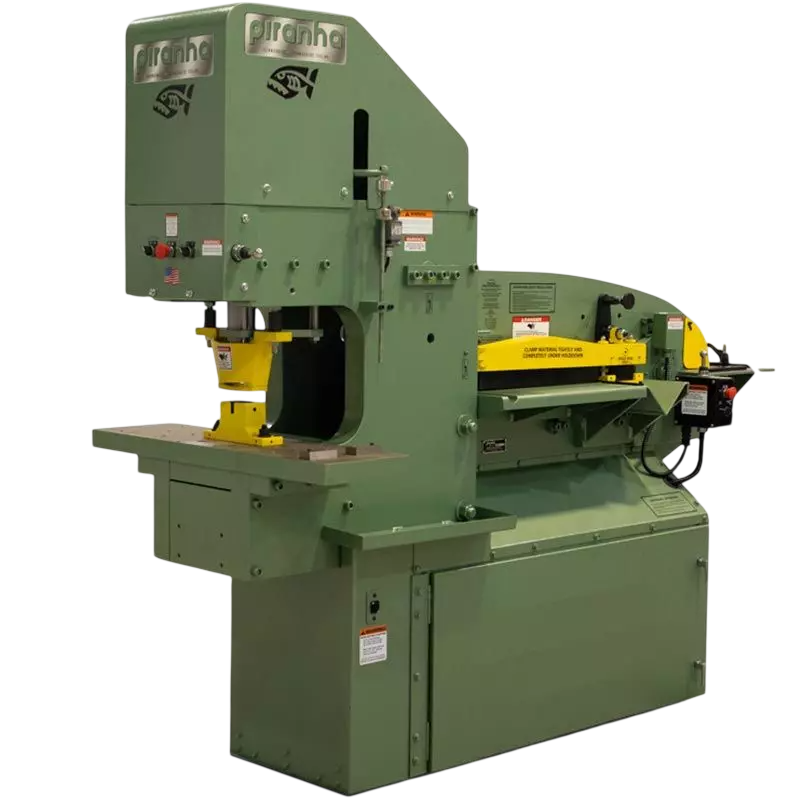

Piranha PII-88 Ironworker
88-ton single-operator dual-station ironworker with 24-inch plate shear for structural steel and heavy fabrication
- Tonnage
- 88 tons
- Throat Depth
- 9 in
Piranha

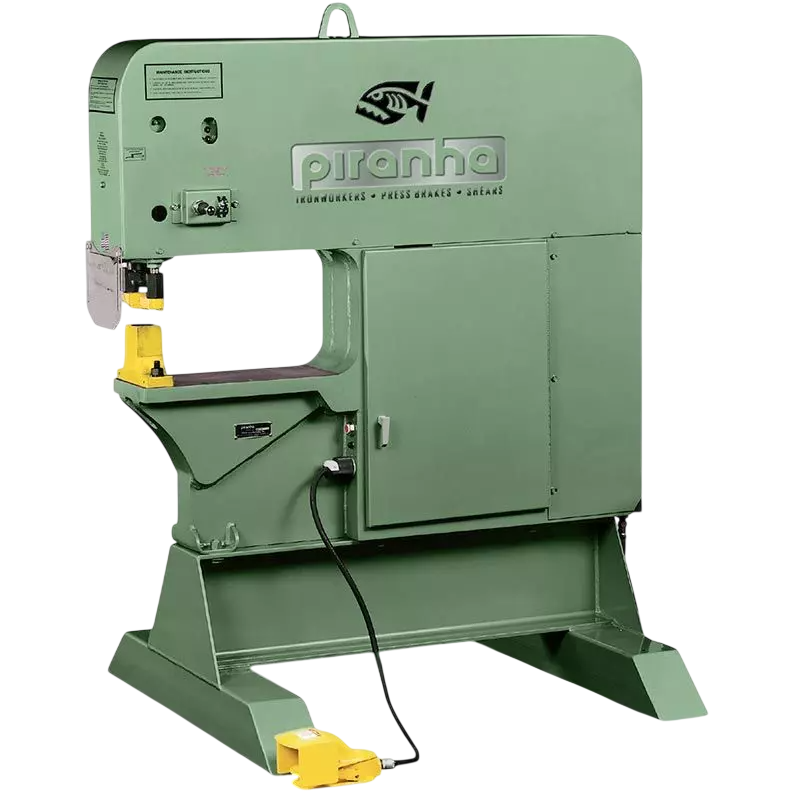

Piranha SEP-120 Single End Punch
120-ton single-end punch for high-volume structural steel punching with a 21.5-inch throat depth
- Tonnage
- 120 tons
- Throat Depth
- 21.5 in
Buyer Guidance
How to Choose
Match the machine to your part mix. A turret punch shines on high-mix flat sheet with many features per part, swapping tools fast to punch holes, louvers, and forms without changing setups. If your parts carry a lot of different features and you value flexibility, the turret is the foundation.
For angular hole patterns and parts that need features placed at varied angles, a rotation punch gives you the indexing to position them accurately and repeatably. It is the right answer when the geometry gets more complex than a standard grid.
When the work is structural steel, an ironworker punches and shears on one machine, so you handle angle, flat bar, and plate without moving the part between stations. For a shop that does structural fabrication, it is the most versatile workhorse on the floor.
