Mitsubishi Press Brakes

WHY MAKE THE SWITCH TO MITSUBISHI & MC MAchinery PRESS BRAKES?

MC Machinery and Mitsubishi have taken on Adira to become a leader in press brake tech. With both Adira and the Mitsubishi Diamond press brake lines, these machines can perform high quality metal manufacturing of all kinds. From aerospace, to construction, to medical technologies and general metal manufacturing, these press brakes can serve a wide variety of industries.

Reasons to Make the Press Brake Switch —>

Request a Quote —>

Mitsubishi Automatic Tool Changer (ATC) Press Brake Series

Compatible with the Diamond Hybrid BH Series Press Brake

Save yourself some time and money.

Automation in the press brake world hasn’t seen something like this. Without having to switch tools manually, the Mitsubishi tool manipulator allows for seamless operations when bending sheet metal. Want a part that will look exactly how you want it and for high production? Look no further…

Request A Quote —>

Contact Us for More Information —>

Automatic TOol Changer Specifications:

CAPABILITIES:

• Tool storage – Customers now have options ranging from 107.28’ (32m) up to 170.60’ (52m) of tooling, allowing the greatest variation of tooling storage ranging from high runner V openings to specialized tooling, such as hemming or offset tooling

• Automated too setup & cleaning – The ATC will automatically change the tooling while the operator is free to perform other tasks further reducing press brake setup time. Up to 50 mm (2”) v-die opening and 500mm (19.7”) tool lengths can be used in the ATC. The manipulator is also equipped with a cleaning device that cleans the tools and bed surface automatically during tool changes.

• Tool usage flexibility – Machines equipped with the ATC are not limited to using tools from the tool changer’s storage. The operator can use the machine as a stand-alone press brake, as well as an automated system. This gives the operator flexibility for hot jobs, one-offs, or jobs that utilize tooling not stored in the tool changer allowing for the greatest flexibility of any other ATC system.

• The Diamond BH “dual drive” system controls high-speed up/down movement with a ball screw and bending movement by the servo-hybrid piston system for unbeatable functionality.

• The dual drive system allows high-speed down movement at 200 mm per second with high repeat-stop accuracy while still offering energy savings thanks to an assist device that stores the energy of down movement for the industry’s fastest cycle time 2.3s.

• The ram floats on a gas cushion, thereby greatly diminishing the weight to return the ram to the top of the stroke, resulting in lower operational costs for greater cost-efficiency.

• Ram cylinders powered by AC servo motors with 1-micron repeat accuracy and combined with a back gauge, accurate down to 4 microns, the BH Series delivers positioning accuracy unparalleled in the industry, part after part.

• With automatic thickness detection & compensation, angular irregularities are minimized due to material thickness with no added options or external measurement devices needed; the BH series holds tolerances some machines can only hope to do with angle measurement systems.

COMPONENTS:

• Dual-drive hybrid (ram positioning by electric ball screw and hybrid piston system) with highly stable repeat accuracy (1-micron repeat accuracy) +001mm

• High-speed dual-drive hybrid (fastest cycle time in its class)

• Large stroke and open height

• Patented automatic micro-wedge crowning system (standard)

• Standard 5-axis back gauge on 2.5/3m (optional 7- & 9-axis back gauges available)

• Standard 7-axis back gauge on 4m (optional 9-axis back gauge available)

• LED lighting over the back gauge and front work area (standard)

• Pulse handle with axis control & bending support (standard)

• 5” X-axis max gauge distance (4-micron back gauge repeat accuracy) +0.004mm

• Simple up/down foot pedal safety system (standard)

• Interlocked rear access gate (standard)

• Mitsubishi servo amplifiers and motors

• One-touch European tool holders (standard)

ON-BOARD PRODUCTIVITY:

• Automatic thickness detection/compensation capabilities for accurately measuring part thickness on the fly

• Work efficiency analysis capabilities to ensure you’re always working at peak production

USER INTERFACE:

• USB & Lan peripheral interfacing

• CNC control with 22” multi-touchscreen LCD display with 3D simulation, 2D/3D draw functionality, and custom multiuser & multilanguage interface

SYSTEM INFORMATION:

• Microsoft Windows operating system (16GB)

• Large program capacity (64GB) with a comprehensive tool library

OPTIONAL COMPONENTS:

• Angle measurement

• Sheet followers (75 kg and 150 kg)

• Sheet supports

• Moveable foot pedal

• Tandem foot pedal

• Laser finger guarding

• Extra CNC back gauge axes (up to 9 axes)

• Hydraulic clamping from Wila and Wilson

• Back gauge touch sensors

• Tooling packages from Wila, Wilson, and Mate

• Interlocked side gates over the C-frames

• American segmented upper punch holders

• Small segmented European punch holders

• DiamondBend offline programming software

• Automatic tool changer

• VIDERE operator support system

• Increased throat

• Increased open height

• Bar code reader

also See:

• MITSUBISHI PRESS BRAKES

• All MitSUBISHI

• ALL PRODUCTS

Mitsubishi Diamond Electric Press Brake - BB Series

OVERVIEW

• High Accuracy (±1 micron)
• Intuitive Control
• Highly reliable / High uptime
• Cost efficient operation
• World class productivity
• Ecological (all electric/oil-less)

OPTIONS:

• F Axis (X prime) 5th axis on the back gauge. ± 4 inch X-axis range

• Angle Measurement

• Laser finger protection

• Infrared light curtain finger protection

• Programmable back gauge finger touch sensors

• WILA & Wilson hydraulic clamping

• Safety side guard panels

• Bend 3D offline programming software

• Support Table

• Magnetic back gauge fingers

Or View Financing Brochure—>

FEATURES

• 22-inch Multi-touch LCD display

• USB & Lan peripheral interfacing

• Large program capacity (40gb)

• Tool Library

• Custom Multi-user & language interface

• 3D Simulation

• 2D/3D draw functionality

• Automatic Thickness Detection – measure thickness on the fly

• High-Speed ball screw drive (Fastest cycle time in its class)

• High stable repeat accuracy ball screw drive (1-micron repeat accuracy) +0.001mm

• Environmentally friendly (low noise / no oil)

• Pulse handle with axis control & bending support

• 25.6” X-axis max gauge distance (4 micron back gauge repeat accuracy) +0.004mm

• CNC control with Microsoft Windows

• CNC back gauge (4 or 5 axis back gauge)

• Interlocked rear access gate

• LED lighting over back gauge and front work area standard

• UP & Down safety foot pedal system

• Mitsubishi Servo Amplifiers and Motors

• Extreme reliability and quality

• European One Touch tool holders

• Work efficiency analysis

BB Series Specifications

* Offerings vary depending on machine - contact us for full post-purchase offerings.

Also See:

• ELECTRIC & HYBRID PRESS BRAKES

• AUTOMATED TOOL CHANGER (ATC)

• PIRANHA IRONWORKERS

<— All Mitsubishi Press Brakes

Mitsubishi Diamond Hybrid Press Brake - BH Series

specifications

Some of the most reliable machines in the industry

• The electric AC servo motor hybrid and ball screw drive mechanism achieves the greatest of performance, outclassing other electric and hybrid press brakes, all while ensuring long-term accuracy and minimum internal wear. From large aerospace and defense corporations to mid-sized metalworking shops, this machine will be sure to pull in cost savings. The BH series is a press brake you can consistently count on to do everything you need it to.

Make your OPERATION cost-effective

• The BH series was crafted to deliver optimal results while minimizing required resources. Complex parts can be made easily while lowering costs. With both lower energy consumption but built for thick metal, this press brake can work on any project your shop throws at it.

high quality for little effort

• An easy to use 22” multi-touchscreen makes everything from day-to-day operations to programming and 3D simulation fast and fun. That means that this machine has the potential to be the best choice for any operator, regardless of skill level. Simply put, the requirements for the controller and operation of the machine are light and stress-free.

Or View Financing Brochure—>

* Offerings vary depending on machine - contact us for full post-purchase offerings.

Also See:

• ELECTRIC & HYBRID PRESS BRAKES

• MITSUBISHI FIBER LASERS

• PIRANHA IRONWORKERS

<— All Mitsubishi Machines

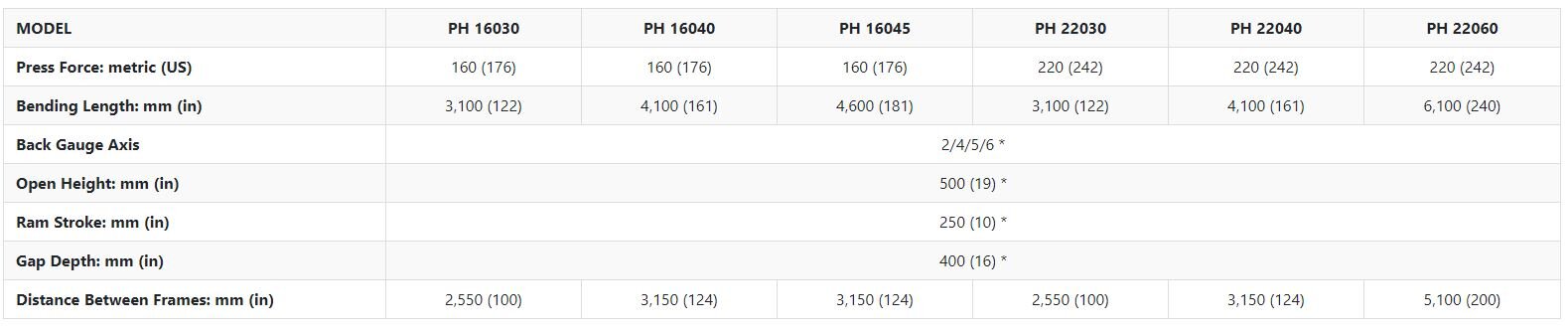

Adira PH Series Hydraulic Press Brake

Or View Financing Brochure—>

Also See:

• ELECTRIC & HYBRID PRESS BRAKES

• AUTOMATED TOOL CHANGER (ATC)

• PIRANHA IRONWORKERS

<— All Mitsubishi Press Brakes

Adira PA Series Hydraulic & High Tonnage Press Brake

Or View Financing Brochure—>

Also See:

• ELECTRIC & HYBRID PRESS BRAKES

• AUTOMATED TOOL CHANGER (ATC)

• PIRANHA IRONWORKERS

<— All Mitsubishi Press Brakes

Mitsubishi Videre On-Screen Operator Support

Compatible with most Diamond BB & BH Series Press Brakes

Press Brake Training Costs have never been lower.

Wouldn’t it be great if there could be someone in the room at all times to instruct operators on how to correctly bend their parts? What if a screen was put right in front of the operators that gave real-time feedback on the size, direction and location of their parts? Well, look no further; this state-of-the-art press brake technology by Mitsubishi brings a whole new meaning on how to workers on the production floor.

• Lower Setup Time

  • Compared with a manual clamped machine, the Videre gives up to 80% reduction in time spent during setup.

• Increase Accuracy

  • By having both a screen in front of the operator’s work station and allowing for guidance of the parts both rear and front view, less mistakes will be made and the amount of slipups will be greatly reduced.

• Enhance Production

  • With fewer bending mistakes and reductions in time spent setting up and training, no extra money is spent on automation and more time is spent on production.

Being quick and easy to understand for any operator, the Videre add-on brings simplicity to a skill that was once a technical one.

Request A Quote —>

Contact Us for More Information —>

Videre Press Brake Support Specifications:

The VIDERE operator support system is available for the following Diamond BB series and Diamond BH series press brakes:

Technical Specs:

CAPABILITIES:

• Reduced setup time due to shape, length, and install position information is displayed in front of the operator in a 1 to 1 scale it is quick and easy to understand for any skill level

• Bending simulation is displayed on the front of the machine and guides part handling from both a front and rear view, preventing mistakes for asymmetrical work.

• Work is clearly displayed in a large, easily readable format directly in front of the operator, eliminating any unnecessary movement that could result in mistakes or inefficiencies.

• Reduced setup time, fewer bending mistakes, and less operator movement to the control to check bending sequence or confirm dimensions equals more parts per shift of operation. Increase production with the same footprint of a standalone machine without the large budget for automation.

• The machine becomes the teacher whether you are forming for the 1st time or unfamiliar with the press brake you can process a part guided by the VIDERE operator support tool. Practice bending by watching the simulation and have operators trained in hours or less. So simple a salesman can operate it.

• Work status, parts in progress, caution signals, and other notifications can be visually recognized and understood from anywhere in the shop

• Display additional support documentation, engineering notes, setup sheets, job travelers, part pictures, etc. Attach and precautionary documentation that is important to processing the part and the system will display information for the operator.

Request More Information —>
